Application of Screw Packing Machine
Our screw packing machine is widely used across various industries for fastener packaging:
- Fasteners: Screw, Bolt, Nut, Washer, Rivets, Nails.
- Plastic/Rubber Parts: Wall Anchor, Rubber O-Rings, Toys, Lego Building Bricks, Small Plastic Parts.
- Hardware Parts: Hardware Components, Hardware Connectors, Metal Parts Etc.
- Furniture Accessorles: Furniture Connectors, Furniture Fasteners, Furniture Fittings, Furniture Accessories, Door Handle, Hinge Etc.
- Others: Any small hardware or plastic part of regular or irregular shape.
Samples

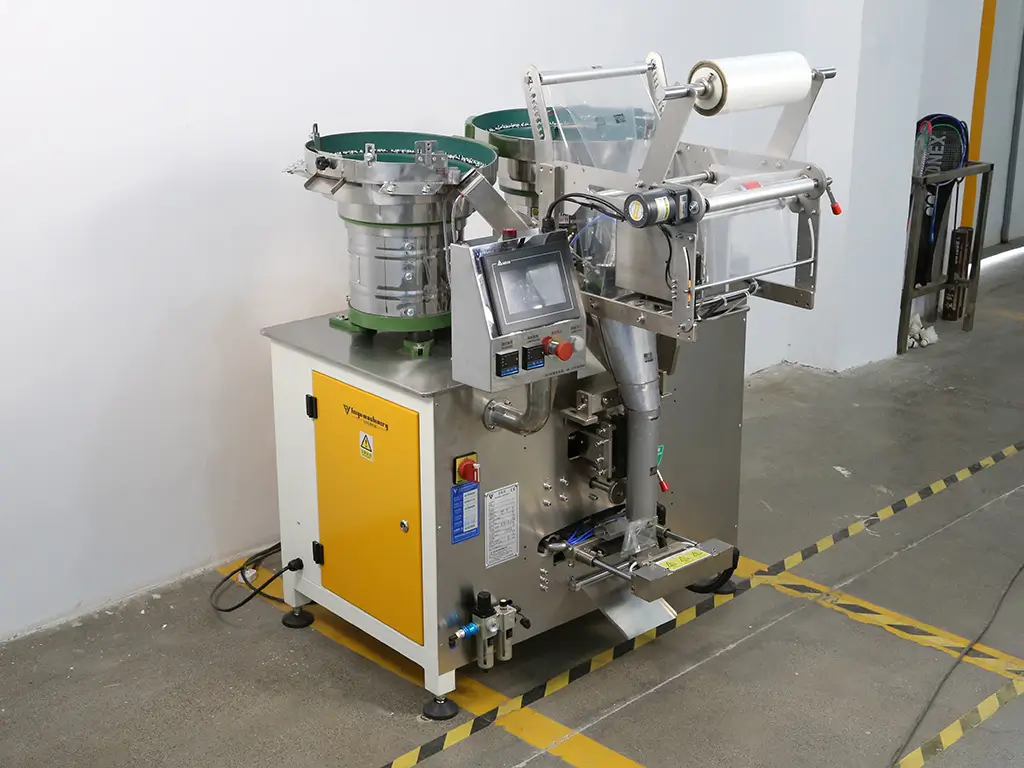

Double bowl design
The screw bagging machine adopts a double hopper system to process nuts and bolts of different specifications at the same time, improving production efficiency. Through precise counting and dispensing functions, it ensures that the quantity in each packaging bag is exactly the same to avoid waste.

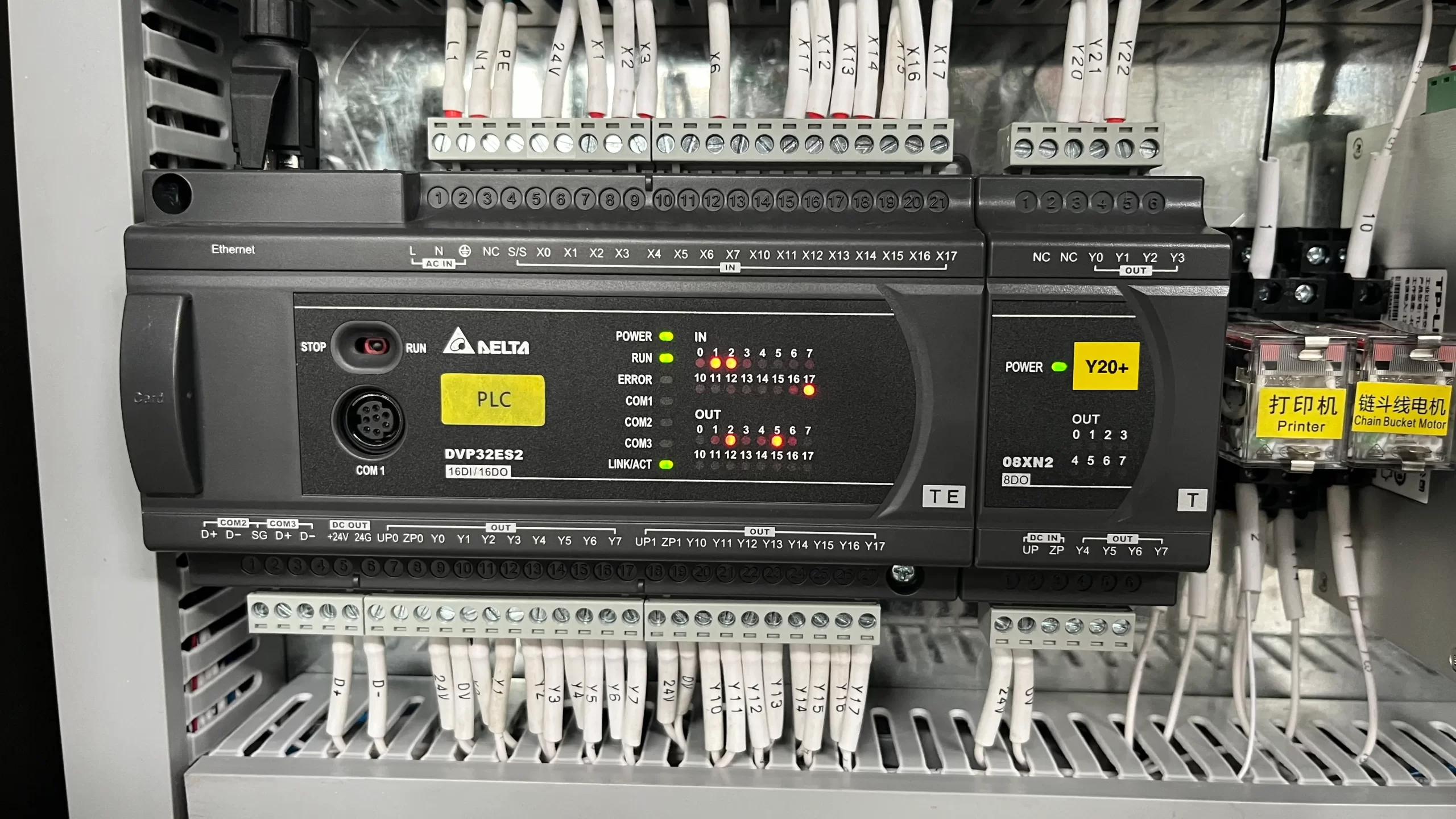

PLC Control System
7 inch touch screen, easy operation and multiple language for choice.
automatic screw counting packing machine
Equipped with a high-precision fiber counting device, it automatically counts the number of screws to ensure accurate packaging. It then fills the predetermined quantity into each package, providing a reliable and consistent output.
Adjustable parameters
Packaging parameters such as packaging quantity, speed, bag size, etc. are easy to set to suit various production requirements and adapt to different types of screws and hardware.
Bag making system
The system can automatically make bags from rolls and adjust bag size, sealing method, etc. according to product requirements
Not only for screws, but also for other small hardware components such as nuts, bolts, washers and plastic parts, making it a versatile asset in your packaging system.
Model Comparison
| Model | FY-240A-2 | FY-420A-2 |
| Packing size | L: 30-180mm, W: 50-140mm | L: 50-300mm, W: 50-200mm |
| Max film width | 300mm | 420mm |
| Packing material | PA/PE, PP/CPP, PET/PE | |
| Counting capacity | 1-20 pcs/bag; 1-2 types/bag | |
| Packing speed | 10-40 bag/min | |
| Power | AC220V/50-60Hz/2kW | |
| Machine size | 1500mm(L)* 1200mm(W)* 1650mm(H) | |

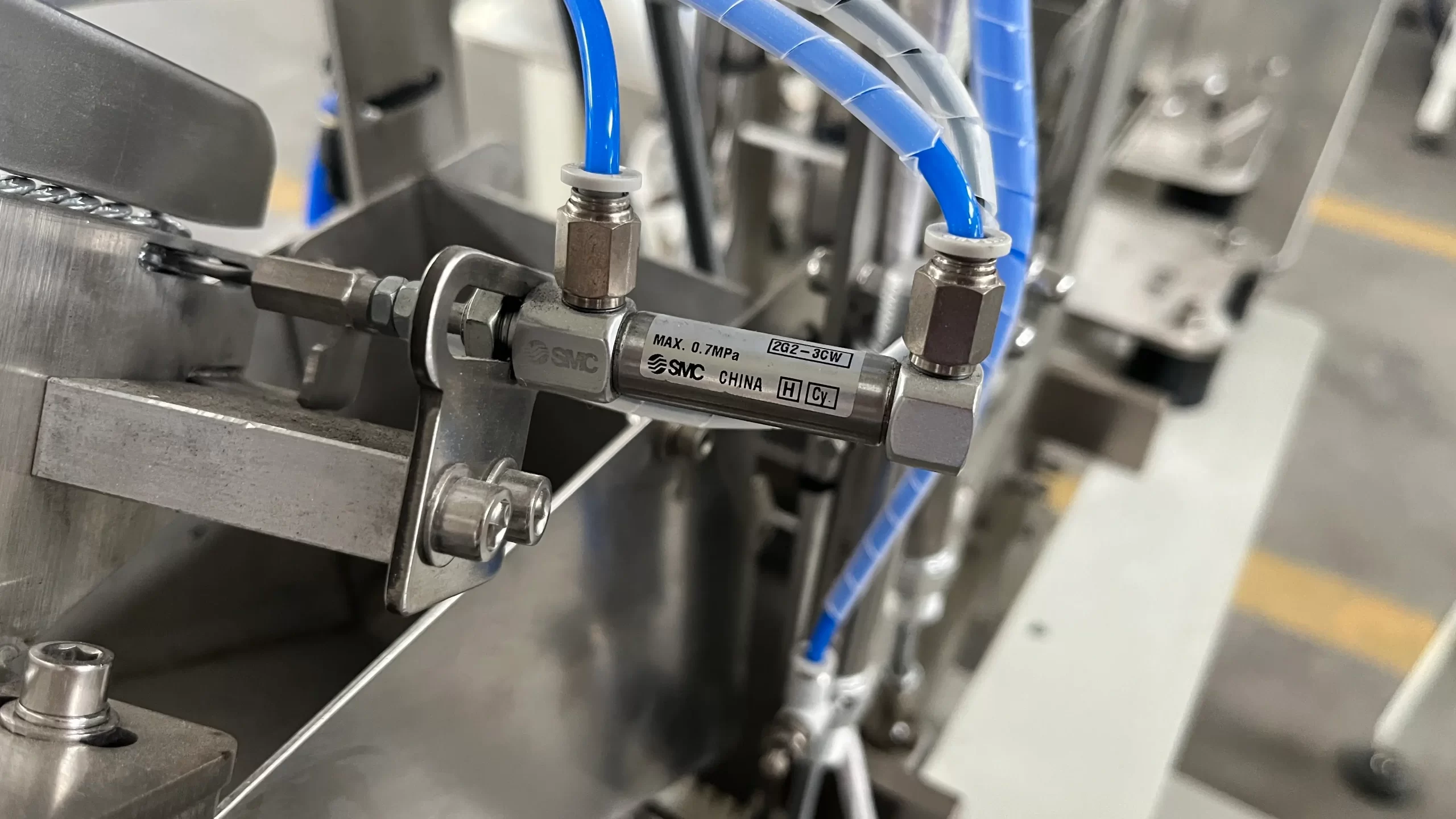

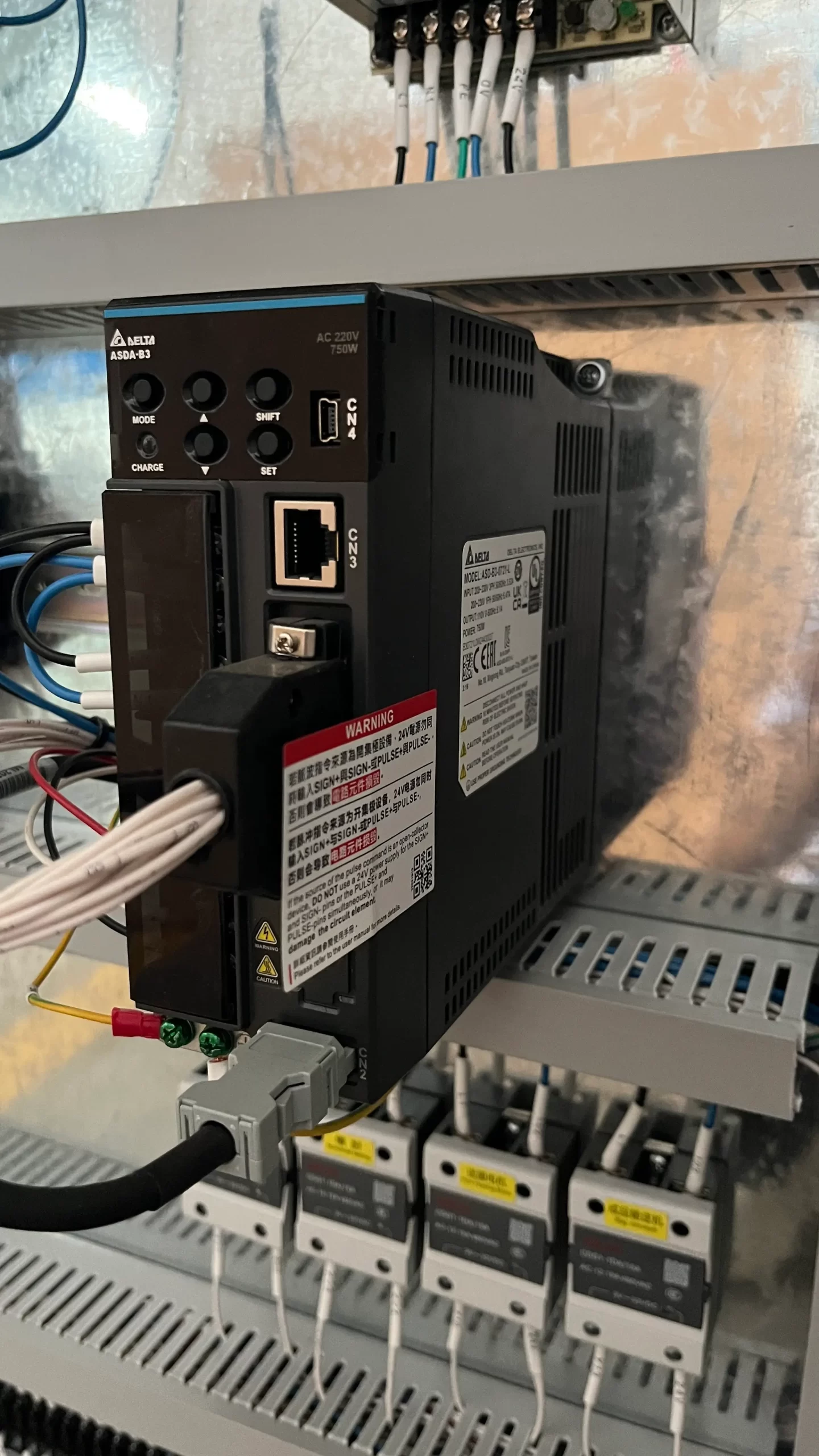

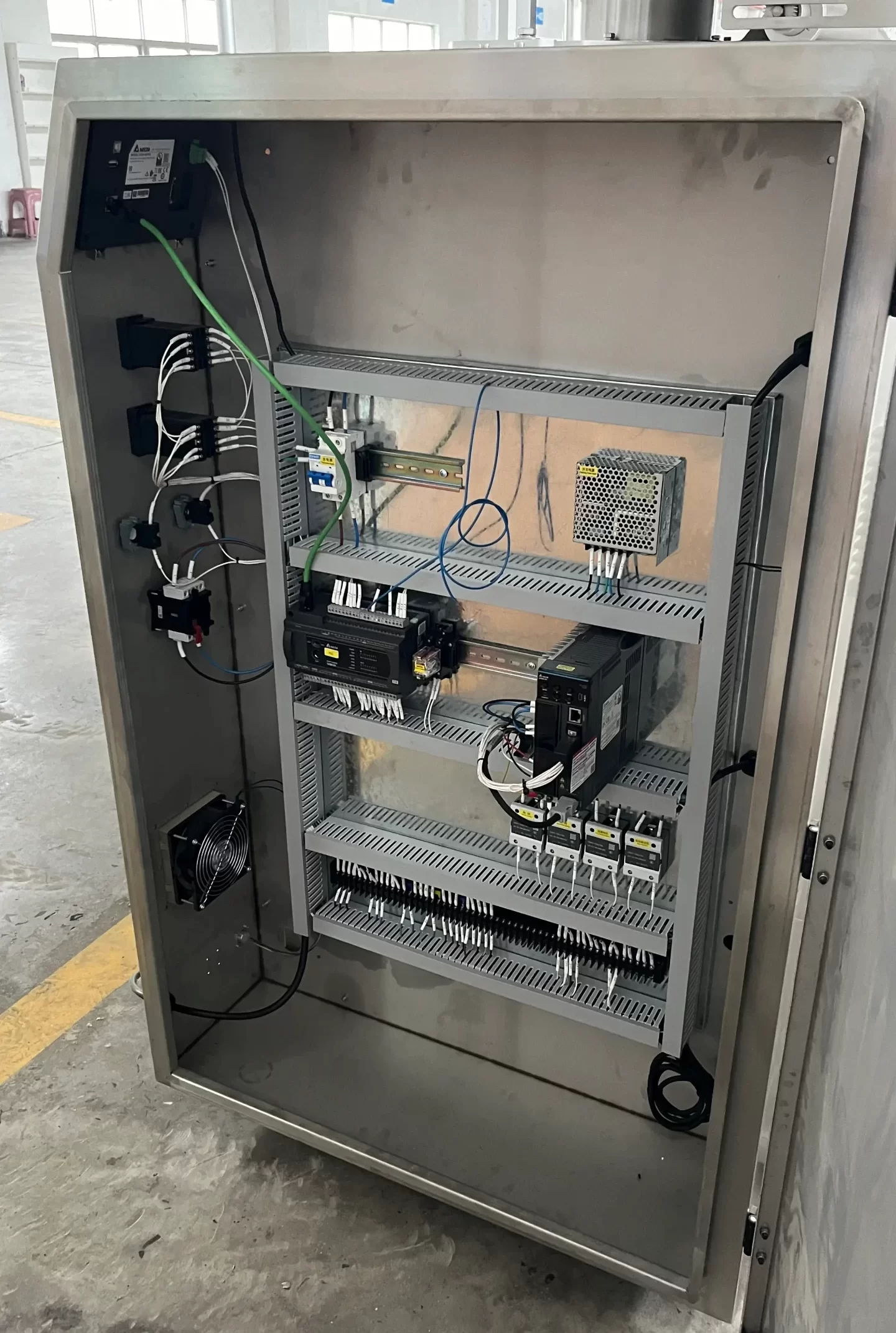

Optional control systems and core accessories
Video
FAQ
What types of products can this screw packing machine pack?
This automatic screw packing machine is suitable for automatic counting and packaging of various hardware parts, including but not limited to:
Various specifications of screws (self-tapping screws, cross screws, expansion screws, etc.)
Nuts, washers, spring washers, nuts
Small plastic parts, rubber parts, hardware parts
Furniture connectors, electrical components, small hardware for assembly, etc.
If you have special material requirements, you can contact us to customize the vibration plate mold to match the size and shape of your product.
Does it support mixed packaging of different types of parts?
Yes, this machine is equipped with a dual vibration plate control system and supports the following mixed material packaging modes:
Mixed packaging of different types of parts: such as screw + nut combination bagging
Different quantity settings: for example, 4 screws + 1 nut
All materials can be independently set through the touch screen control to ensure accurate quantity per package, especially suitable for complete sets of assemblies (such as furniture screw packages, electrical installation packages).
What is the packaging speed of the machine?
The packaging speed will vary depending on the type, quantity and bag size of the selected materials. The reference speeds are as follows:
Conventional single product packaging speed: about 30-40 bags/minute
Multi-material mixed packaging speed: about 20-30 bags/minute
Note: Accurate counting and packaging quality are prioritized. If you have special requirements for speed, we can recommend a faster upgraded model or linkage line solution for you.
